M
i r a g e M R M - 1
|
The new Mirage MRM-1 mini-monitor is a vented, "cost-no-object"
two-way design and a "first" for Mirage.
Its 1" ferrofluid cooled PTH(tm) Pure Titanium Hybrid dome tweeter
was chosen after an extensive world-wide search for the best
tweeter money can buy. That search concluded with the tweeter
that originated in the venerable Mirage flagship, the M-1si.
Via a crossover of military grade componentry, the tweeter is
mated to an equally high performing mid/bass driver, a 5 1/2"
unit with a carbon, graphite and mica injected polypropylene
cone and butyl surround in an acoustically inert injection-molded
copolymer basket. Both are mounted on a baffle of 3/4" thick
sculpted Corian bonded to 1" MDF for a total 1 3/4" of acoustically
inert rigidity.
The remainder of the cabinet also achieves an extraordinary
degree of freedom from resonance by being not only 1" thick
MDF but also lined with 1/4" sheet steel plate. This makes for

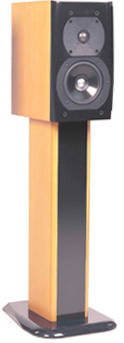

a heavy speaker - 35lbs each! Optional stands, sand or shot-fillable,
are finished as exotically as the speakers - real wood with
Corian inserts.
Inputs are gold-plated Cardas(tm) Bi-Amp/Bi-wire type. Performance
boasts include 3dB frequency response from a low 40Hz to 22KHz
at 85dB efficiency. Impedance is 8 ohms nominal.
Recommended amplifiers range from 50 to 150 watts rms/ch. The
MRM-1 is recommended for use in small to medium sized rooms
for audio. In larger rooms and in home theatre applications
it can be used with a range of Mirage powered subwoofers.
The cabinet measures 13" x 7 1/2" x 11". Finishes for both speakers
and stands are Tigerwood, Cherry and Black Ash veneers.
(from Mirage
Speaker 's Website)
|
|
Model:
|
MRM-1
|
|
System
Type:
|
Bass
Reflex Nearfield Monitor
|
|
Frequency
Response:
|
40Hz
- 22KHz
|
|
Tweeter:
|
1"
PTH (Pure Titanium Hybrid)
|
|
Woofer:
|
5
1/2" Carbon Graphite and Mica injected polypropylene
cone with butyl surround
|
|
Front
Baffle:
|
3/4"
Sculpted Corian bonded to 1" MDF (1 3/4" total).
|
|
Crossover
Point:
|
1.8
KHz
|
|
Room
Efficiency::
|
85
db
|
|
Impedence:
|
8
Ohms
|
|
Recommended
Amplifier Power:
|
50-150
Watts RMS/Channel
|
|
Inputs:
|
Gold
Plated Cardas Bi-amp/Bi-wire Terminals
|
|
Weight:
(ea.)
|
35
lbs (16kg)
|
|
Finish:
|
Cheery,
Tigerwood, Black Ash
|
|
