TEAC AI-501DA INTEGRATED & PD-501HR CDP
« on: July 25th, 2016, 4:04pm »

Modify message









Announcing the arrival of TEAC's highly commented & Award winning Reference series range of Integrated Amp w/USB streaming & DSD/PCM/CD PLAYER.

1. AI-501DA integrated amp w/USB input & DAC-Usual Price@ $1299.00/each. Intro Price@ $999.00/each. $899/each if purchased with PD-501HR CD transport/CDP.

PD-501HR DSD/PCM matching CD Transport/CDP- Usual Price @ $1299.00.
Intro Price@ $999.00/each. $899.00/each if purchased with AI-501DA.

FREE 1pair 1.0M Audioplus Balance XLR interconnect or unbalance interconnect
FREE 1pc 1.5M Ambiance Optical Fiber Cable
FREE 1pc 1.0m Acoustic Research Co-axial cable

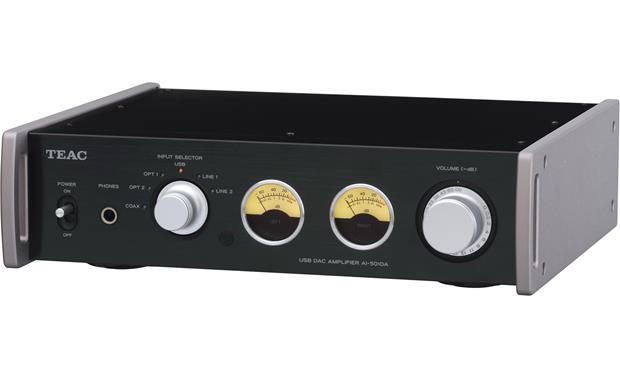

TEAC's AI-501DA integrated power amplifier with 192kHz USB digital audio inputs and low power consumption is the powerhouse of TEAC's new 501 series. Hosting a BurrBrown PCM5102 D/A Converter, USB connectivity, Class-D ABLETEC Norway amplifier and a toroidal-core power transformer makes the AI-501DA a key component for the 501 series or any other 2-channel audio system.

AI-501DA SPECIFICATIONS

Amplifier
Maximum Output Power      90W + 90W (4 ohms, 20Hz to 20kHz)
45W + 45W (8 ohms, 20Hz to 20kHz)
Rated Output Power      60W + 60W (4 ohms, 20Hz to 20kHz)
30W + 30W (8 ohms, 20Hz to 20kHz)
Supported Impedance      4 ohms to 8 ohms
Total harmonic distortion      0.05% (1kHz, 4 ohms, 55W)
S/N ratio (input short)
LINE IN      100dB (IHF-A)
Frequency range      10Hz to 60kHz (−3dB)
Digital audio inputs
COAXIAL      RCA jack x 1 (0.5Vp-p/75ohm)
Sampling frequency      32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
bit rates      16/24-bits
OPTICAL      Optical digital connectors x 2 (−24.0 to −14.5dBm peak)
Sampling frequency      32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kH
bit rates      16/24-bits
USB      Type B connector x 1 (USB 2.0 compliant)
Sampling frequency      32 kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
bit rates      16/24-bits
Analog audio inputs
RCA      RCA jacks x 2pairs
Nominal input level      -10dBV
Maximum input level      +6dBV
Headphones output
Connector      Standard 6.3mm stereo jack
Maximum output level      50mW + 50mW or more (32 ohms, THD+N 0.1%)
Power supply      AC120V, 60Hz
Power Consumption      55W
Overall Dimensions      290(W) x 81.2(H) x 264(D) mm,
11.4"(W) x 3.2"(H) x 10.4"(D)
Net Weight      4.0kg
Operating Temerature      +5˚C to +35˚C
Operating humidity range      5% to 85% (no condensation)
Storage Temerature:      -20˚C to +55˚C
Accessories      AC Cable, AC Plug Adapter (3P-2P), Remote Control, AAA Batteries (x2), Owner's Manual, Warranty Card

Operating system requirements
Windows      Windows XP*
Windows Vista
Windows 7
Windows 8
Windows 10
* Windows XP Professional x64 Edition is not supported
Macintosh      Mac OS X Snow Leopard (10.6)
OS X Lion (10.7)
OS X Mountain Lion (10.
OS X Mavericks (10.9)
OS X Yosemite (10.10)
OS X El Capitan (10.11.1)




The PD-501HR is a high-quality disc player with 5.6MHz DSD file native playback and up to 24bit/192kHz PCM on recordable DVD discs. Featuring unique VACS (Vibration Acoustic Control Structure) to control vibrations, separate power supplies for analog and digital sections, the PD-501HR really is an uncontested disc player.


PD-501HR SPECIFICATIONS
Supported Media      CD-DA, CD-ROM, CD-R, CD-RW (ISO9660 Level 1/2/Joilet)
DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW (UDF, DVD-ROM compatible)
*SACD is not supported
*Only 12cm discs can be used
Supported Audio Formats
CD-DA (Audio CD )      44.1kHz
16bit
PCM (WAV)      44.1kHz, 88.2kHz, 176.4kHz, 48kHz, 96kHz, 192kHz
16/24-bit
DSD      2.8MHz, 5.6MHz
Audio Performance
CD-DA
Frequency range      20Hz – 20kHz
S/N ratio      116dB
Distortion      0.0013%
Dynamic range      103dB
PCM(192kHz/24-bit)
Frequency range      20Hz - 80kHz
S/N ratio      116dB
Distortion      0.0004%
Dynamic range      118dB
DSD
Frequency range      20Hz - 80kHz
S/N ratio      116dB
Distortion      0.0005%
Dynamic range      112dB
Analog output
RCA
Connector      RCA Pin Jack
Output impedance      100 ohms
Nominal output voltage level      0.32Vrms
Digital outputs      The sampling frequency and bit rate used by the digital outputs (COAXIAL and OPTICAL) are the same as for the playback source. During DSD playback or CD/PCM playback in pure mode, however, nothing is output from the digital outputs.
COAXIAL
Connector      RCA Pin Jack
Output impedance      75 ohms
Output level      0.5Vp-p
OPTICAL
Connector      TOS-link
Output impedance      -24.0 to -14.5 dBm peak
Output level      0.5Vp-p
Operation Power      120V AC, 60Hz
Power Consumption      11W (Auto power save standby mode: 0.1W)
Overall Dimensions      290 (W) x 81.2 (H) x 244 (D) mm
11.4" (W) x 3.2" (H) x 9.6" (D)
Net Weight      4.2kg (9 3/8 lb)
Operating Temerature      +5˚C to +35˚C
+41˚F to +95˚F
Operating Humidity      5% to 85% (no condensation)
Storage Temerature      -20˚C to +55˚C
-4˚F to +131˚C
Accessories      AC Cable, AC Plug Adapter (3P-2P), Remote Control, AAA Batteries (x2), Owner's Manual, Warranty Card


For Mac users using the optical output found behind the 3.5mm stereo socket, we have the special optical adaptor in stock@ $5.00/each.



Purchase w/Purchase-To sweeten the deal further we are offering the New OZ AUDIO Silver PowerCord valued @ $199.00/1.5m each to customers who purchased either the TEAC AI-501DA or PD-501HR@ a reduced price of just $99.00/1.5m each. Limited to 1 cable per UD-501.

REVIEWS:

http://www.trustedreviews.com/news/teac-reference-501-high-end-m ini-hi-fi-launched
http://www.visualgrandprix.com/vgp2013/vgp_p2_9.html
http://www.phileweb.com/aea/2013/aex-j.html
http://www.phileweb.com/aea/2013/kekka.html#tokubetsu

Please also visit our web-store@


www.musiclinkav.com

Audition now @
Musiclink AV Distribution
100 Beach Road, #02-46-49
Shaw Tower
Singapore 189702
tel: 65-62911106
Mon-Sat: 12.30-8pm daily.
Sun: Closed


« Last Edit: July 25th, 2016, 4:06pm by musiclinkav » Logged
