Tube Preamplifier
« on: July 14th, 2023, 3:24pm »
|
|

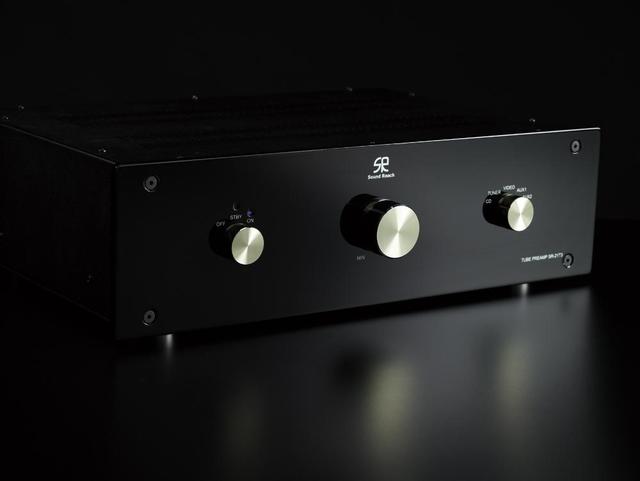

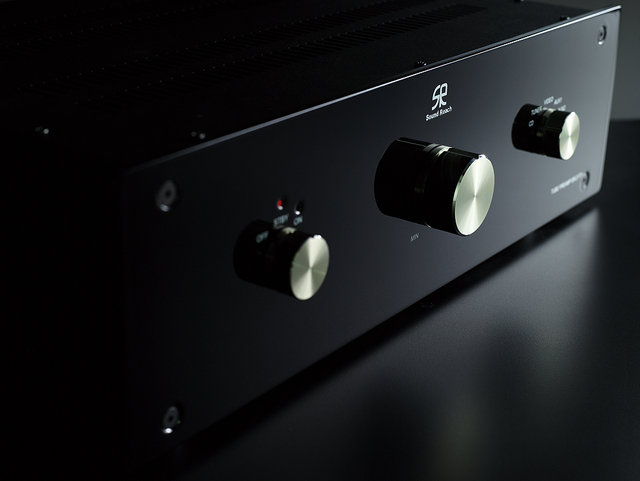

SR-21T3 Tube Preamplifier
FEATURES

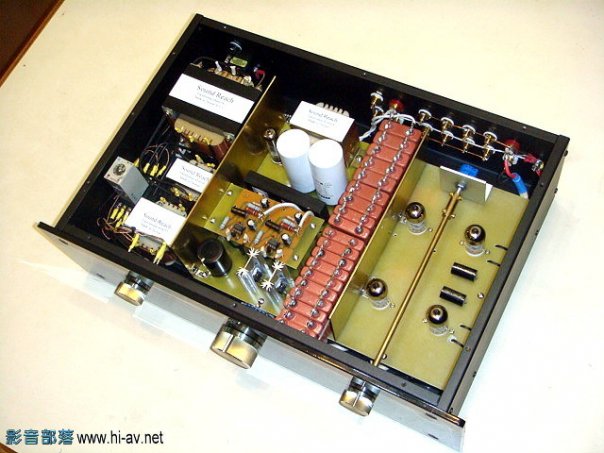

Extensive point-to-point handwiring,, fully hand-made preamplifier tube, allocated preamplifier for audiophile–of enthusiasts of tube technology. The preamplifier carried out is on four tubes 6922 , the attractive design provides very good sound that you can enjoy the music for a longer time and being touched. Automatic biasing circuit, zero feedback designs. Power supply and audio section are heavily shielded. The circuits are arranged to achieve the shortest possible signal path and to obviate internal wire connections from the input to the output terminals. M-Cap Supreme siliver/gold, MIT MultiCap capacitors for coupling caps. Oil Ultrapath capacitors, other condensers Wima,RIFA. Tube complement: 4* 6922 dual triodes, 1 * 6X4 with choke rectifier. Four 6922 tubes work under four independent voltage regulators.
SPECFICATIONS Frequency Responce: +/- 1dB from 10Hz to 100KHz Signal-to-Noise Ratio >98dB Total Harmonic Distortion < 0.05% Input: Impedance: 100K Ohms Total Gain: +20dB/1KHz Input: RCA * 5 pairs,cd input set uses the WBT RCA chassis socket Output: RCA * 2 pairs,1 pair uses the WBT RCA chassis socket Power Source: 100-130 / 220-240VAC,50/60Hz Dimensions: 480*150*320mm(W*H*D) Net Weight: 37.5 lbs. (17Kg) Warranty: 2 Years Parts and Labor / Tubes for 90 days HANDMADE IN TAIWAN R.O.C
New in box 3,000-USD
SOUND REACH AUDIO DESIGN CO.,LTD.
Website www.soundreach.tw E–mail sradg@soundreach.tw
|
